SPECIFICATIONS





Charging method: Wireless charging

Compatible: ios & Android

Connection method: Wifi connection (15 meters)

Host net weight: 120g

Operating mode: B, B/M, CFM, PDI, CFM, PW

Probe: 2-in-1 probe

Probe frequency: 3.2MHz/7.5MHz(adjustable)

battery capacity: 1350mAh

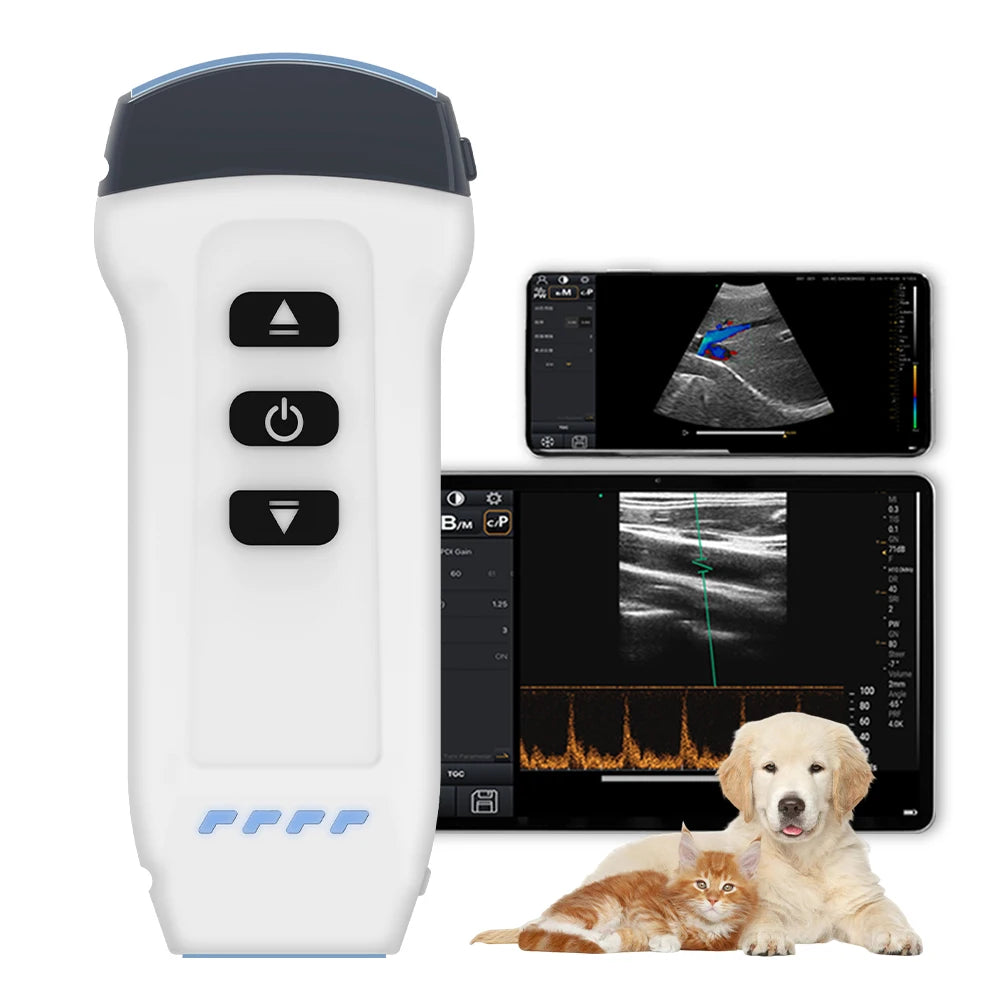

DW-X1 is a veterinary color Doppler scanner that combines 3.2MHz convex and 7.5MHz linear probes into one.

While the handheld design brings portability, it also has color Doppler function. The modes include B, B/M, CFM, PDI, CFM, and PW. It can collect blood flow movement, tissue movement information, and organ tissue imaging, etc.



The main function:

- For pregnant animals

- Master postpartum uterine recovery

- Diagnosis of uterine diseases

- Observe embryonic development

- Estimate the number of babies

- General data measurements



Specification:

- Model: DW-X1

- Color Doppler: Yes

- Adaptation: ios (version 12.3 or above)/Android (version 8.1.0 or above)

- Probe: Dual probe (convex probe/linear probe)

- Probe frequency: 3.2MHz/7.5MHz (adjustable)

- Connection method: Wifi connected to mobile phone/computer (15 meters)

- Power: 1350mAh (continuous operation ≥ 2 hours)

- Charging method: wireless charging

- Display mode: B, B/M, CFM, PDI, CFM, PW

-Puncture assist: In-Plane, Out-Plane

- Depth (mm): 16 levels adjustable

- Video playback: 100/200/500/1000 frames

- Gain range: G30~G105

- PW Gain: 0-100

- Image grayscale: 256 levels

- One-click parameter recovery function

- Host size: 12.3*5.3*2.2cm

- Host net weight: 120g

- Measurement functions: pregnancy test, backfat thickness, distance, circumference, area, volume, angle, heart rate

- Scope of application: Ultrasound examination for various needs in pet hospitals, clinics, zoos, breeding/breeding bases and various scientific research units, etc.

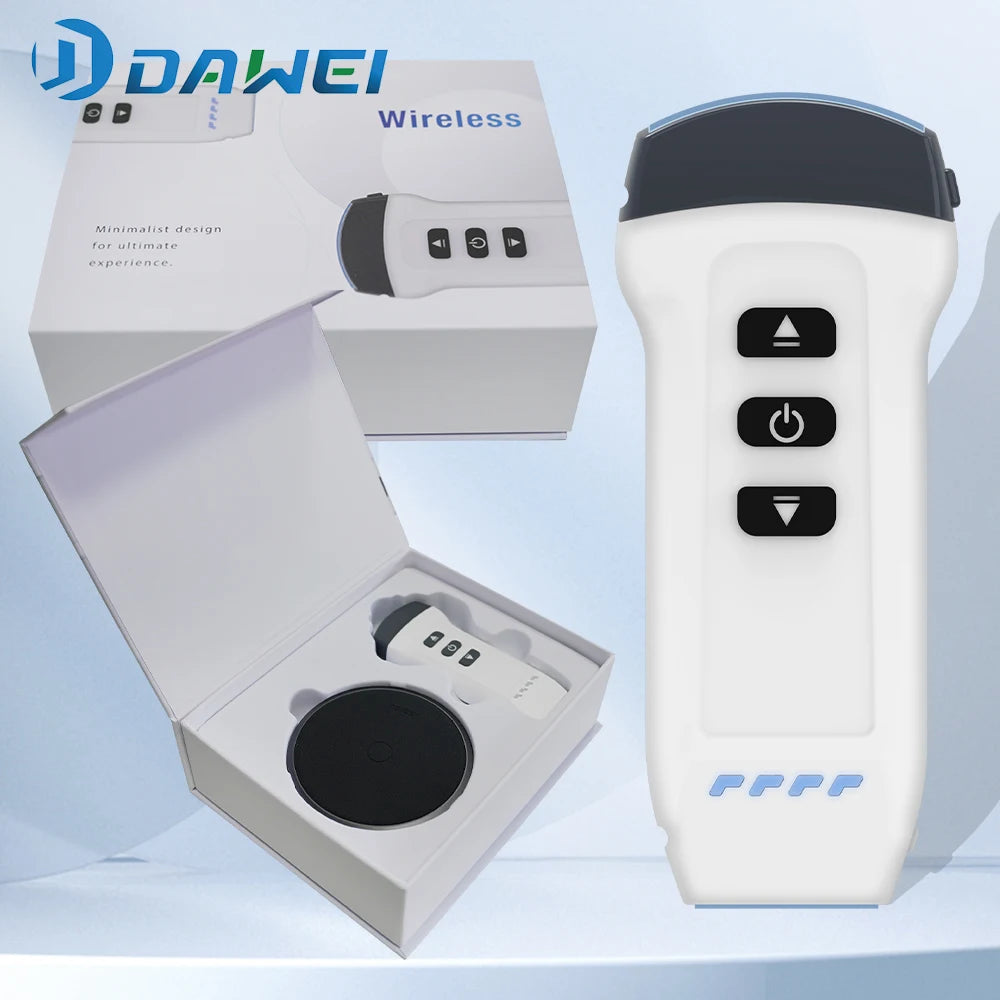

Package Included:

- 1 x wireless probe

- 1 x user manual

- 1 x wireless charger
